Deep Neural Networks (PyTorch)

%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
plt.rcParams['xtick.direction'] = 'in'
plt.rcParams['ytick.direction'] = 'in'
plt.rcParams['axes.grid'] = True
plt.rcParams['axes.axisbelow'] = True
plt.rcParams['figure.dpi'] = 150

%pip install torch

# Check available hardware
import torch
if torch.cuda.is_available():
    print(f'GPU is available, using GPU {torch.cuda.get_device_name(0)}')
    device = torch.device('cuda')
elif torch.mps.is_available():
    print(f'Apple Metal Performance Shaders framework is available, using {torch.device("mps")}')
    device = torch.device('mps')
else:
    print(f'Hardware acceleration not available, using CPU')
    device = torch.device('cpu')

import numpy as np
a1 = [1, 2, 3]
a2 = np.array([1, 2, 3], dtype=np.float32)

# Turn these into torch tensors
t1 = torch.tensor(a1)
t2 = torch.tensor(a2)

print(t1)
print(t2)

# Tensors are a lot like numpy ndarrays
a3 = np.eye(3, dtype=np.float32)
print(a3)
print('nd-array attributes:', a3.shape, a3.dtype)

# Turn this into a torch tensor and print out some attributes
t3 = torch.from_numpy(a3)
print(t3)
print('tensor attributes:', t3.shape, t3.dtype, t3.device, t3.grad, t3.grad_fn)

# tensor operations

# Resize
t3_1 = t3.reshape([9,])
print(t3_1)

# Data type conversion
t3_2 = t3.bool()
print(t3_2)

# Send to other device
t3_3 = t3.to(device)
print(t3_3)

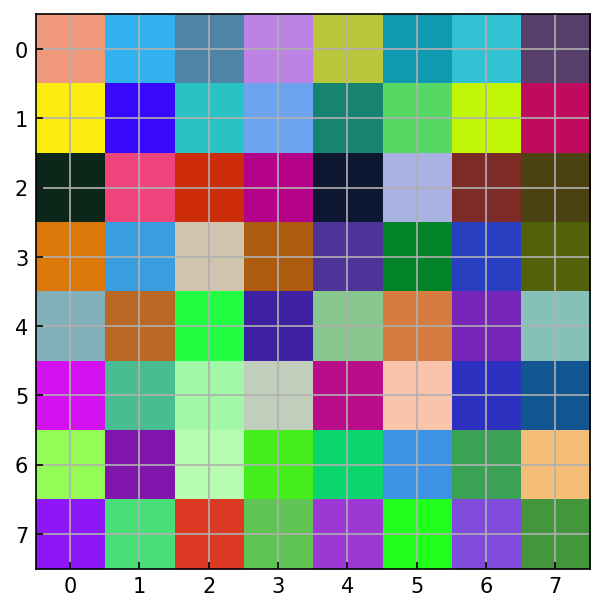

t_big = torch.rand(1, 3, 8, 8)

%matplotlib inline
import matplotlib.pyplot as plt
ax = plt.figure().gca()
ax.imshow(t_big.squeeze().permute(1, 2, 0))

t1 = torch.rand(3, 2)
t2 = torch.normal(mean=0, std=1, size=(3, 2))

# Elementwise product
t3 = t1 * t2
print('Elementwise product', t3.shape, '\n', t3)

# Mean along dimension
print()
t4 = t2.mean(dim=1)
print('Dimension mean', t4.shape, '\n', t4)

# Matrix multiplication
print()
t5 = t1.T @ t2
print('Matrix multiplication', t5.shape, '\n', t5)

# L2 Norm
print()
t6 = torch.linalg.norm(t2)
print('L2 norm', t6.shape, '\n', t6)

print('For elements t1:', t1.shape, 'and t2:', t2.shape)

# Tensor concatenation
print()
t3 = torch.concat([t1, t2], dim=1)
print('concat(t1, t2):', t3.shape)

# Tensor splitting
print()
t4, t5 = torch.split(t3, 2, dim=1)
print('split t3 at index 2 on dimension 1:')
print('\tFirst part', t4.shape, ' = t1?', torch.all(t1 == t4))
print('\tSecond part', t5.shape, '= t2?', torch.all(t2 == t5))

# Tensor stacking
print()
t6 = torch.stack([t1, t2], dim=0)
print('stack(t1, t2):', t6.shape)

from torch.utils.data import Dataset
class BasicDataset(Dataset):
    def __init__(self, x, y):
        self.x = x
        self.y = y

    def __len__(self):
        """ So torch code knows how many examples to fetch from the dataset """
        return self.x.shape[0]

    def __getitem__(self, idx):
        """ So torch code knows how to access the underlying data """
        return self.x[idx], self.y[idx]

# A torch Dataset can be accessed just like an array now
dataset = BasicDataset(
    x=torch.rand([10, 4]),
    y=torch.arange(10, dtype=torch.long)
)

print(f"The size of the dataset is {len(dataset)}")
print(f"The 4th element of the dataset is {dataset[3]}")

from torch.utils.data import TensorDataset
tensor_dataset = TensorDataset(dataset.x, dataset.y)
print(f"The size of the dataset is {len(tensor_dataset)}")
print(f"The 4th element of the dataset is {tensor_dataset[3]}")

from torch.utils.data import DataLoader

# Initialize a loader
loader = DataLoader(dataset, batch_size=2, shuffle=True)

# Iterate through the loader
for batch in loader:
    xb, yb = batch
    print(xb, yb)

# Iterate through multiple epochs
for epoch in range(2):
    print()
    # Iterate through the loader
    for batch in loader:
        xb, yb = batch
        print(xb, yb)

import os
print(f'Environment has {os.cpu_count()} available cores')

dataset = TensorDataset(
    torch.rand([8192, 3, 128, 128]),
    torch.arange(8192, dtype=torch.long)
)
print(len(dataset))

from time import time

# Create a loader with batch_size 32, no multi-processing
loader = DataLoader(dataset, batch_size=32, num_workers=0)

# Iterate through the loader and time each epoch
for epoch in range(2):
    t = time()
    for batch in loader:
        a = len(batch[0])
    print('Epoch', epoch, 'time = ', time()-t, 's')

from time import time

# Create a loader with batch_size 32, num_workers > 0
loader = DataLoader(dataset, batch_size=32, num_workers=2)

# Iterate through the loader and time each epoch
for epoch in range(2):
    t = time()
    for batch in loader:
        a = len(batch[0])
    print('Epoch', epoch, 'time = ', time()-t, 's')

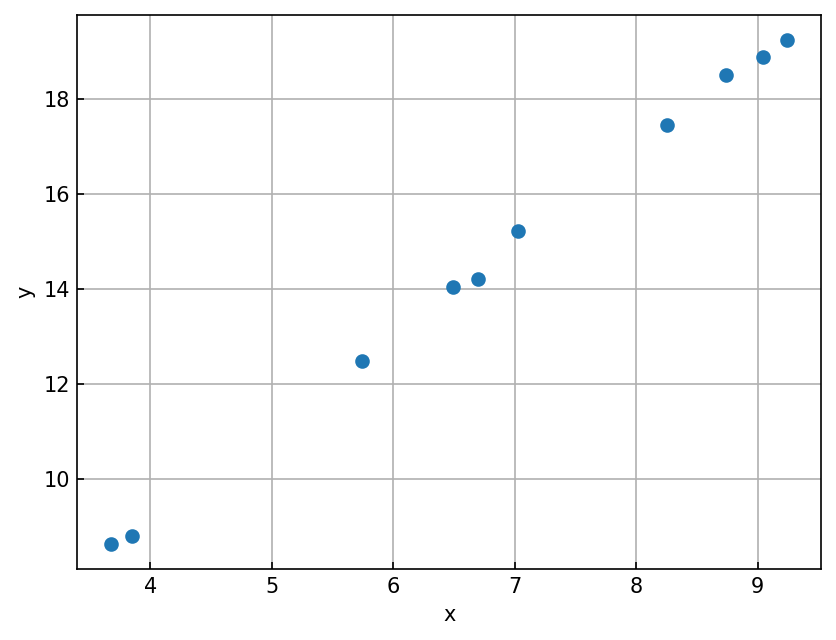

X = np.random.uniform(size=(10, 1)).astype(np.float32) * 10
noise = np.random.normal(0, 0.25, size=X.shape).astype(np.float32)

y = 2. * X + 1. + noise

ax = plt.figure().gca()
ax.scatter(X, y)
ax.set(xlabel='x', ylabel='y')

from torch.utils.data import TensorDataset, DataLoader

# Convert numpy arrays into torch tensors
X_train = torch.from_numpy(X)
y_train = torch.from_numpy(y)

# A TensorDataset holds the torch tensors
train_dataset = TensorDataset(X_train, y_train)

# A dataloader serves up the data to the model
train_loader = DataLoader(train_dataset, batch_size=1, shuffle=True)

def mse_loss(y_true, y_pred):
    """ Loss function """
    # np.power(y_true - y_pred, 2).mean()
    return (y_true - y_pred).pow(2).mean()

def model(x):
    """ Model is linear equation """
    return x @ slope + intercept

# Initialize model weights
slope = torch.randn(1)
slope.requires_grad_()
intercept = torch.zeros(1, requires_grad=True)

slope, intercept

lr = 0.01 # Learning rate
num_epochs = 100 # Run for 100 epochs
log_epochs = 10 # Print out loss every 10 epochs

for epoch in range(num_epochs):
    epoch_loss = 0.
    for x_batch, y_batch in train_loader:
        # Make a prediction
        y_pred = model(x_batch)

        # Compute the loss
        loss = mse_loss(y_pred, y_batch)

        # Compute and backpropagate gradients
        loss.backward()

        # Apply the weight updates
        with torch.no_grad():
            slope -= lr * slope.grad
            intercept -= lr * intercept.grad

            slope.grad.zero_()
            intercept.grad.zero_()

        # Update the running loss tally
        epoch_loss += loss.item()

    if epoch % log_epochs == 0:
        print(f"Epoch {epoch}: loss = {epoch_loss:.3f}")

print(f"Fit parameters: slope = {slope.item():.3f}, intercept = {intercept.item():.3f}")

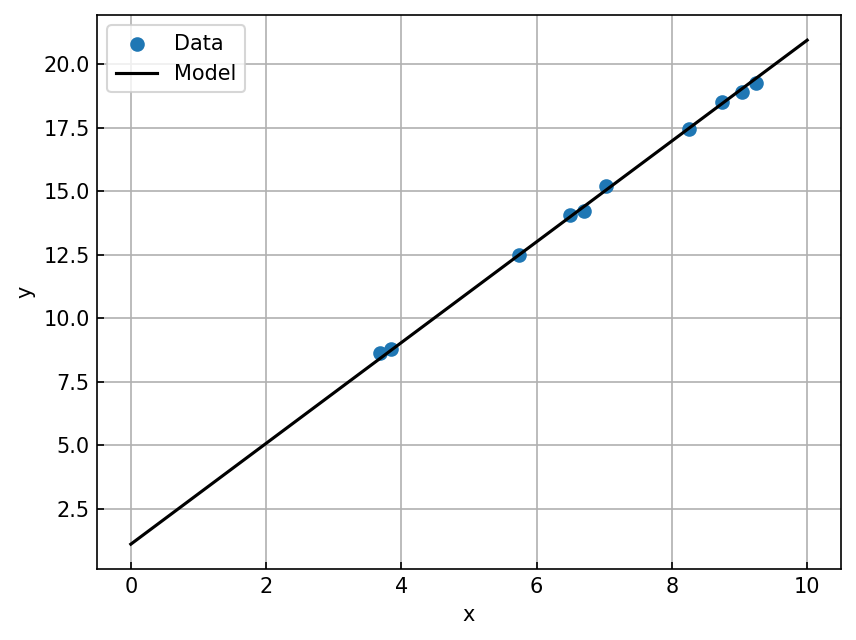

ax = plt.figure().gca()
ax.scatter(X, y, label='Data')

xx = torch.linspace(0, 10, 5, dtype=torch.float32, requires_grad=False)
yy = model(xx[:, None])
ax.plot(xx.numpy(), yy.detach().numpy(), color='black', label='Model')

ax.set(xlabel='x', ylabel='y');
ax.legend()

# Initialize the model weights
slope = torch.randn(1, requires_grad=True)
intercept = torch.zeros(1, requires_grad=True)

for x_batch, y_batch in train_loader:
    print(slope.grad, intercept.grad, slope.grad_fn)

    y_pred = model(x_batch)
    print(slope.grad, intercept.grad, y_pred.grad_fn)

    loss = mse_loss(y_batch, y_pred)
    print(slope.grad, intercept.grad, loss.grad_fn)

    loss.backward() # This computes the gradients for our relevant tensors
    print(slope.grad, intercept.grad)

    break

from torch.nn import Linear, MSELoss
from torch.optim import SGD

# Create a nn.Linear model that maps x -> y with a bias term
model = Linear(1, 1, bias=True)

# Put the model on the hardware accelerator (GPU, TPU, etc.)
model = model.to(device)

# Use MSE Loss in torch
loss_fn = MSELoss()

# Compute weight updates using stochastic gradient descent
optimizer = SGD(model.parameters(), lr=0.01)

for epoch in range(num_epochs):
    epoch_loss = 0.
    for x_batch, y_batch in train_loader:
        # Send x, y to the model device
        x_batch = x_batch.to(device)
        y_batch = y_batch.to(device)

        # Make the prediction
        y_pred = model(x_batch)
        # Compute the loss
        loss = loss_fn(y_pred, y_batch)

        # Compute and backpropagate the gradients
        loss.backward()

        # Apply the weight updates using the optimizer
        optimizer.step()

        # Zero out the gradients for the next pass
        optimizer.zero_grad()

        epoch_loss += loss.item()

    if epoch % log_epochs == 0:
        print(f"Epoch {epoch}: loss = {epoch_loss:.3f}")

print(f"Fit parameters: slope = {model.weight.item():.3f}, intercept = {model.bias.item():.3f}")

ax = plt.figure().gca()
ax.scatter(X, y, label='Data')

with torch.no_grad():
    xx = torch.linspace(0, 10, 5, dtype=torch.float32, device=device)
    yy = model(xx[:, None])[:, 0]
    ax.plot(xx.cpu().numpy(), yy.cpu().numpy(), color='black', label='Model')

ax.set(xlabel='x', ylabel='y');
ax.legend()

X = np.random.uniform(size=(32, 1)).astype(np.float32) * 10
noise = np.random.normal(0, 0.5, size=X.shape).astype(np.float32)

y = 0.5 * X**2 + 2. * X + 1. + noise

ax = plt.figure().gca()
ax.scatter(X, y)
ax.set(xlabel='x', ylabel='y')

def make_xor_dataset(N=100, random_seed=42):
    np.random.seed(random_seed)
    X = np.random.randn(N, 2).astype(np.float32)
    y = np.logical_xor(X[:, 0] > 0, X[:, 1] > 0)
    y = np.where(y, 1, 0)
    return X, y

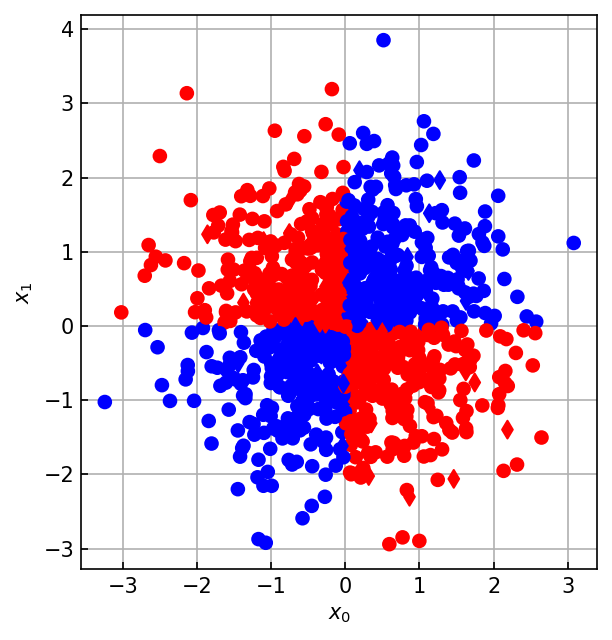

X, y = make_xor_dataset(N=1024, random_seed=42)
X_test, y_test = make_xor_dataset(N=64, random_seed=1)

ax = plt.figure().gca()
ax.scatter(X[:, 0], X[:, 1], c=y, marker='o', cmap='bwr')
ax.scatter(X_test[:, 0], X_test[:, 1], c=y_test, marker='d', cmap='bwr')
ax.set(xlabel='$x_0$', ylabel='$x_1$', aspect='equal');

from torch.utils.data import TensorDataset, DataLoader, random_split

# Create a TensorDataset
train_val_dataset = TensorDataset(torch.from_numpy(X), torch.from_numpy(y))

# Perform a train/validation split
train_dataset, val_dataset = random_split(train_val_dataset, [0.8, 0.2])

# Create a test dataset as well
test_dataset = TensorDataset(torch.from_numpy(X_test), torch.from_numpy(y_test))

print(f"Train: {len(train_dataset)}, Val: {len(val_dataset)}, Test: {len(test_dataset)}")

import torch.nn as nn
# Create a model using torch.nn.Sequential
model = nn.Sequential(
    nn.Linear(2, 128),
    nn.Sigmoid(),
    nn.Linear(128, 2)
)
model

import torch.nn as nn
import torch.nn.functional as F

# Create a model by extending torch.nn.Module
class Model(torch.nn.Module):
    """ A torch.nn.Module object implements a forward pass
        Torch, under the hood, takes care of everything else
    """
    def __init__(self, input_size=2, hidden_size=128, output_size=2):
        super().__init__()
        self.hidden = nn.Linear(input_size, hidden_size)
        self.output = nn.Linear(hidden_size, output_size)

    def forward(self, x):
        x = self.hidden(x)
        x = F.sigmoid(x)
        x = self.output(x)
        return x

model = Model(
    input_size=X.shape[1],
    hidden_size=128,
    output_size=2, # 2 classes
).to(device)
model

from tqdm import tqdm, trange

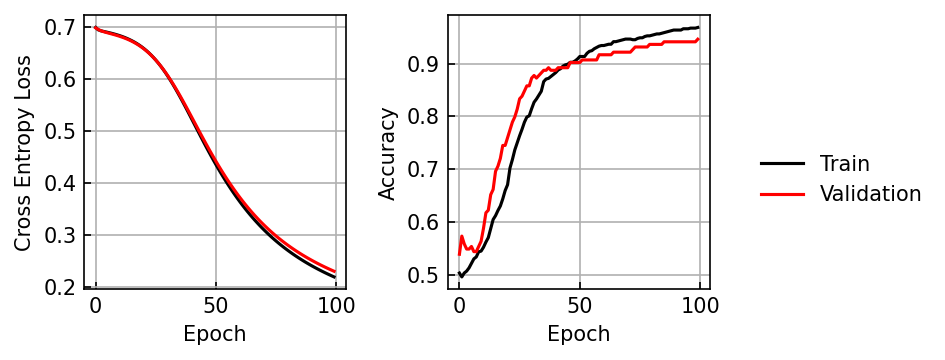

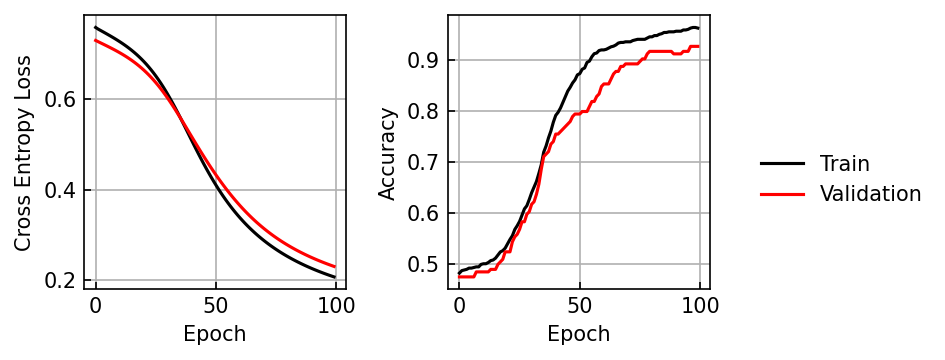

def train(model, loss_fn, optimizer, train_dataset, val_dataset, batch_size=32, max_epochs=100):
    train_loss, train_acc = [], []
    val_loss, val_acc = [], []

    # Create dataloaders for train/validation
    train_loader = DataLoader(train_dataset, batch_size=batch_size)
    val_loader = DataLoader(val_dataset, batch_size=batch_size)

    pbar_epoch = trange(num_epochs)
    for ii in pbar_epoch:
        train_loss_ = 0.
        train_acc_ = 0.
        for x, y, in train_loader:
            # Send x, y to GPU/TPU/etc.
            x = x.to(device)
            y = y.to(device)

            # Make a prediction, compute the loss
            y_pred = model(x)
            loss = loss_fn(y_pred, y)

            # Backpropagate gradients, apply weight updates, reset gradients
            loss.backward()
            optimizer.step()
            optimizer.zero_grad()

            # Logging
            train_loss_ += loss.item() * x.shape[0]
            train_acc_  += (torch.argmax(y_pred, dim=1) == y).float().sum().item()

        train_loss.append(train_loss_ / len(train_dataset))
        train_acc.append(train_acc_ / len(train_dataset))

        val_loss_ = 0.
        val_acc_ = 0.
        with torch.no_grad():
            for x, y, in val_loader:
                # Send x, y to GPU/TPU/etc.
                x = x.to(device)
                y = y.to(device)

                # Make a prediction, compute the loss
                y_pred = model(x)
                loss = loss_fn(y_pred, y)

                # Logging
                val_loss_ += loss.item() * x.shape[0]
                val_acc_  += (torch.argmax(y_pred, dim=1) == y).float().sum().item()

            val_loss.append(val_loss_ / len(val_dataset))
            val_acc.append(val_acc_ / len(val_dataset))

        pbar_epoch.set_postfix(
            epoch=f"{ii+1:03d} / {num_epochs:03d}",
            train_loss=f"{train_loss[-1]:.3f}",
            train_acc=f"{train_acc[-1]:.3f}",
            val_loss=f"{val_loss[-1]:.3f}",
            val_acc=f"{val_acc[-1]:.3f}")

    return model, (train_loss, train_acc, val_loss, val_acc)

loss_fn = nn.CrossEntropyLoss()
optimizer = torch.optim.SGD(model.parameters(), lr=0.1)
model, model_stats = train(model, loss_fn, optimizer, train_dataset, val_dataset)

def loss_accuracy_plot(train_loss, train_acc, val_loss, val_acc):
    fig, ax = plt.subplots(1, 2, sharex=True, figsize=(5, 2.5))

    ax[0].plot(train_loss, color='black', label='Train')
    ax[0].plot(val_loss, color='red', label='Validation')
    ax[0].set(xlabel='Epoch', ylabel='Cross Entropy Loss')

    ax[1].plot(train_acc, color='black', label='Train')
    ax[1].plot(val_acc, color='red', label='Validation')
    ax[1].set(xlabel='Epoch', ylabel='Accuracy')

    fig.legend(*ax[1].get_legend_handles_labels(),
            loc='center left', bbox_to_anchor=[1, 0.5], framealpha=0)
    return fig

loss_accuracy_plot(*model_stats)
plt.tight_layout()

from matplotlib.colors import ListedColormap

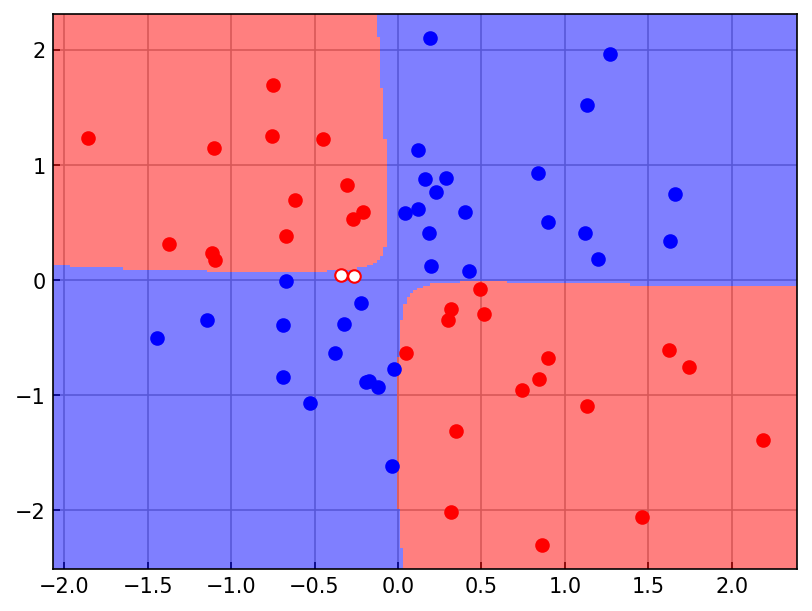

def plot_decision_boundary(ax, X, y, model, d=0.02, colors=['blue', 'red']):
    x1, x2 = np.meshgrid(
        np.arange(X[:, 0].min()-10*d, X[:, 0].max()+10*d, d),
        np.arange(X[:, 1].min()-10*d, X[:, 1].max()+10*d, d),
    )
    with torch.no_grad():
        x_grid = np.stack([x1.ravel(), x2.ravel()]).T
        x_grid = torch.from_numpy(x_grid.astype(np.float32)).to(device)
        y_model = model(x_grid).cpu().numpy()
        y_model = np.argmax(y_model, axis=-1)
        y_model = y_model.reshape(x1.shape)

        y_pred = model(torch.from_numpy(X).to(device)).cpu().numpy()
        y_pred = np.argmax(y_pred, axis=1)

        pred_mask = y_pred == y

    cmap = ListedColormap(colors)
    im=ax.pcolormesh(x1, x2, y_model, alpha=0.5, cmap=cmap)
    for ii, label in enumerate(np.unique(y)):
        label_mask = y == label
        ax.scatter(X[label_mask & pred_mask, 0], X[label_mask & pred_mask, 1],
                   facecolor=colors[label], edgecolor=colors[label])
        ax.scatter(X[label_mask & ~pred_mask, 0], X[label_mask & ~pred_mask, 1],
                   facecolor='white', edgecolor=colors[label])
    return ax

ax = plt.figure().gca()
plot_decision_boundary(ax, X_test, y_test, model)

class LinearModel(torch.nn.Module):
    def __init__(self, input_size=2, hidden_size=128, output_size=2):
        super().__init__()

    def forward(self, x):

class TanhModel(torch.nn.Module):
    def __init__(self, input_size=2, hidden_size=128, output_size=2):
        super().__init__()

    def forward(self, x):

class ReLUModel(torch.nn.Module):
    def __init__(self, input_size=2, hidden_size=128, output_size=2):
        super().__init__()

    def forward(self, x):

for label, model_type in zip(['Linear', 'Tanh', 'ReLU'],
                             [LinearModel, TanhModel, ReLUModel]):
    model = model_type(
        input_size=X.shape[1],
        hidden_size=128,
        output_size=2, # 2 classes
    ).to(device)

    loss_fn = torch.nn.CrossEntropyLoss()
    optimizer = torch.optim.Adam(model.parameters(), lr=0.001)

    model, model_stats= train(model, loss_fn, optimizer, train_loader, val_loader)
    fig = loss_accuracy_plot(*model_stats)
    fig.suptitle(label + " Activation")
    plt.tight_layout()

    ax = plt.figure().gca()
    plot_decision_boundary(ax, X_test, y_test, model)
    ax.set_title(label + " Activation")
    plt.show()

class DeepMLP(torch.nn.Module):
    def __init__(self, input_size=2, hidden_size=128, output_size=2):
        super().__init__()
        self.hidden1 = nn.Linear(input_size, hidden_size)
        self.hidden2 = nn.Linear(hidden_size, hidden_size)
        self.output = nn.Linear(hidden_size, output_size)

    def forward(self, x):
        x = self.hidden1(x)
        x = F.relu(x)
        x = self.hidden2(x)
        x = F.relu(x)
        x = self.output(x)
        return x


model = Model(
    input_size=X.shape[1],
    hidden_size=128,
    output_size=2, # 2 classes
).to(device)

loss_fn = torch.nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=0.001)

model

model, model_stats= train(model, loss_fn, optimizer, train_dataset, val_dataset)
loss_accuracy_plot(*model_stats)
plt.tight_layout()

ax = plt.figure().gca()
plot_decision_boundary(ax, X_test, y_test, model)
