PyTorch (continued)
%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
import seaborn as snss
import pandas as pd
plt.rcParams['xtick.direction'] = 'in'
plt.rcParams['ytick.direction'] = 'in'
plt.rcParams['axes.grid'] = True
plt.rcParams['axes.axisbelow'] = True
plt.rcParams['figure.dpi'] = 150# Check available hardware
import torch
if torch.cuda.is_available():
print(f'GPU is available, using GPU {torch.cuda.get_device_name(0)}')
device = torch.device('cuda')
elif torch.mps.is_available():
print(f'Apple Metal Performance Shaders framework is available, using {torch.device("mps")}')
device = torch.device('mps')
else:
print(f'Hardware acceleration not available, using CPU')
device = torch.device('cpu')GPU is available, using GPU Tesla T4
XOR Dataset Classification¶
def make_xor_dataset(N=100, random_seed=42):
np.random.seed(random_seed)
X = np.random.uniform(size=(N, 2)).astype(np.float32)
X = 2 * X - 1.
y = np.logical_xor(X[:, 0] > 0, X[:, 1] > 0)
y = np.where(y, 1, 0)
return X, y
X, y = make_xor_dataset(N=1024, random_seed=42)
X_test, y_test = make_xor_dataset(N=64, random_seed=1)

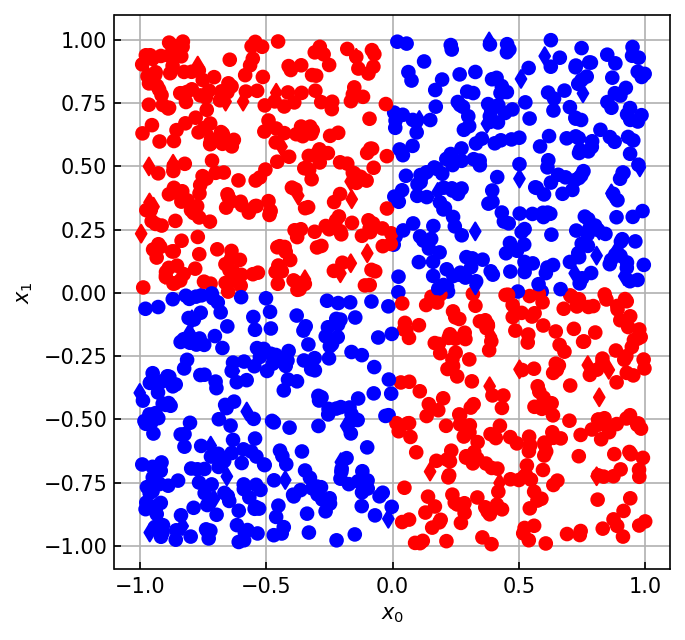

ax = plt.figure().gca()
ax.scatter(X[:, 0], X[:, 1], c=y, marker='o', cmap='bwr')
ax.scatter(X_test[:, 0], X_test[:, 1], c=y_test, marker='d', cmap='bwr')
ax.set(xlabel='$x_0$', ylabel='$x_1$', aspect='equal');
from torch.utils.data import TensorDataset, DataLoader, random_split
print(X.shape, y.shape)
dataset = TensorDataset(torch.from_numpy(X), torch.from_numpy(y))
train_dataset, val_dataset = random_split(dataset, (0.8, 0.2))
test_dataset = TensorDataset(torch.from_numpy(X_test), torch.from_numpy(y_test))
print(f"Train: {len(train_dataset)}, Val: {len(val_dataset)}, Test: {len(test_dataset)}")(1024, 2) (1024,)
Train: 820, Val: 204, Test: 64
Training script (for classification with an arbitrary model)¶
from tqdm import tqdm, trange
from torch.utils.data import DataLoader
def train(model, loss_fn, optimizer, train_dataset, val_dataset,
batch_size=32, max_epochs=100, num_workers=0, device=device):
# Send model to correct hardware device
model = model.to(device)
# Create dataloaders for train/validation
train_loader = DataLoader(train_dataset, batch_size=batch_size,
num_workers=num_workers,
shuffle=True)
val_loader = DataLoader(val_dataset, batch_size=batch_size, num_workers=num_workers, shuffle=False)
train_loss, train_acc = [], []
val_loss, val_acc = [], []
pbar_epoch = trange(max_epochs)
for ii in pbar_epoch:
train_loss_ = 0.
train_acc_ = 0.
model.train()
for x, y, in train_loader:
# Send x, y to GPU/TPU/etc.
x = x.to(device)
y = y.to(device)
# Make a prediction, compute the loss
y_pred = model(x)
loss = loss_fn(y_pred, y)
# Backpropagate gradients, apply weight updates, reset gradients
loss.backward()
optimizer.step()
optimizer.zero_grad()
# Logging
train_loss_ += loss.item() * x.shape[0]
train_acc_ += (torch.argmax(y_pred, dim=1) == y).float().sum().item()
train_loss.append(train_loss_ / len(train_dataset))
train_acc.append(train_acc_ / len(train_dataset))
val_loss_ = 0.
val_acc_ = 0.
model.eval()
with torch.no_grad():
for x, y, in val_loader:
# Send x, y to GPU/TPU/etc.
x = x.to(device)
y = y.to(device)
# Make a prediction, compute the loss
y_pred = model(x)
loss = loss_fn(y_pred, y)
# Logging
val_loss_ += loss.item() * x.shape[0]
val_acc_ += (torch.argmax(y_pred, dim=1) == y).float().sum().item()
val_loss.append(val_loss_ / len(val_dataset))
val_acc.append(val_acc_ / len(val_dataset))
pbar_epoch.set_postfix(
epoch=f"{ii+1:03d} / {max_epochs:03d}",
train_loss=f"{train_loss[-1]:.3f}",
train_acc=f"{train_acc[-1]:.3f}",
val_loss=f"{val_loss[-1]:.3f}",
val_acc=f"{val_acc[-1]:.3f}")
return model, (train_loss, train_acc, val_loss, val_acc)Model creation and training¶
def loss_accuracy_plot(train_loss, train_acc, val_loss, val_acc):
fig, ax = plt.subplots(1, 2, sharex=True, figsize=(5, 2.5))
ax[0].plot(train_loss, color='black', label='Train')
ax[0].plot(val_loss, color='red', label='Validation')
ax[0].set(xlabel='Epoch', ylabel='Cross Entropy Loss', yscale='log')
ax[1].plot(train_acc, color='black', label='Train')
ax[1].plot(val_acc, color='red', label='Validation')
ax[1].set(xlabel='Epoch', ylabel='Accuracy')
fig.legend(*ax[1].get_legend_handles_labels(),
loc='center left', bbox_to_anchor=[1, 0.5], framealpha=0)
return fig
from matplotlib.colors import ListedColormap
def plot_decision_boundary(ax, X, y, model, d=0.02, colors=['blue', 'red']):
x1, x2 = np.meshgrid(
np.arange(X[:, 0].min()-10*d, X[:, 0].max()+10*d, d),
np.arange(X[:, 1].min()-10*d, X[:, 1].max()+10*d, d),
)
with torch.no_grad():
x_grid = np.stack([x1.ravel(), x2.ravel()]).T
x_grid = torch.from_numpy(x_grid.astype(np.float32)).to(device)
y_model = model(x_grid).cpu().numpy()
y_model = np.argmax(y_model, axis=-1)
y_model = y_model.reshape(x1.shape)
y_pred = model(torch.from_numpy(X).to(device)).cpu().numpy()
y_pred = np.argmax(y_pred, axis=1)
pred_mask = y_pred == y
cmap = ListedColormap(colors)
im=ax.pcolormesh(x1, x2, y_model, alpha=0.5, cmap=cmap)
for ii, label in enumerate(np.unique(y)):
label_mask = y == label
ax.scatter(X[label_mask & pred_mask, 0], X[label_mask & pred_mask, 1],
facecolor=colors[label], edgecolor=colors[label])
ax.scatter(X[label_mask & ~pred_mask, 0], X[label_mask & ~pred_mask, 1],
facecolor='white', edgecolor=colors[label])
return aximport torch.nn as nn
from torch.optim import SGD
model = nn.Sequential(
nn.Linear(2, 8),
nn.ReLU(),
nn.Linear(8, 8),
nn.ReLU(),
nn.Linear(8, 8),
nn.ReLU(),
nn.Linear(8, 2),
)
loss_fn = nn.CrossEntropyLoss()
optimizer = SGD(model.parameters(), lr=0.05)
model, model_stats = train(model, loss_fn, optimizer, train_dataset, val_dataset)100%|██████████| 100/100 [00:03<00:00, 28.19it/s, epoch=100 / 100, train_acc=0.987, train_loss=0.036, val_acc=0.990, val_loss=0.025]

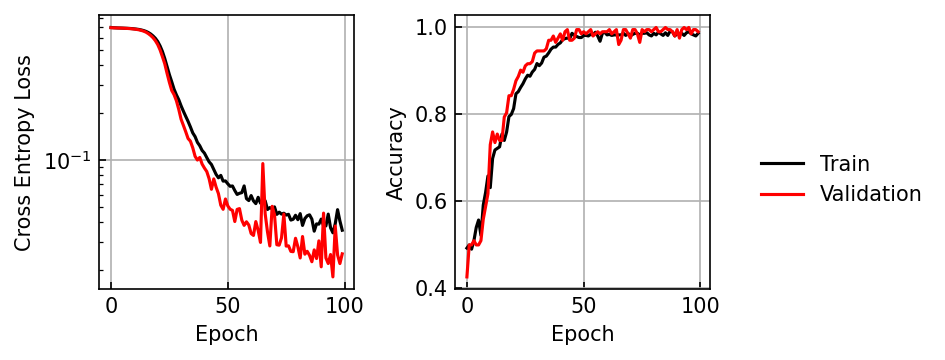

loss_accuracy_plot(*model_stats)
plt.tight_layout()
ax = plt.figure().gca()

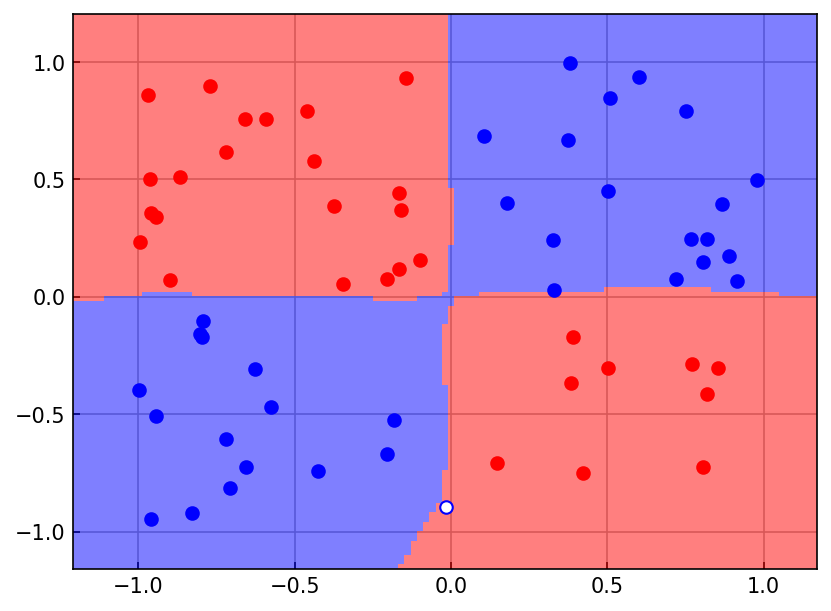

plot_decision_boundary(ax, X_test, y_test, model)<Axes: >
Customizing model behavior¶
class NoisyLinear(nn.Module):
""" Layers also extend nn.Module """
def __init__(self, input_size, output_size, noise_std=0.05):
super().__init__()
self.w = nn.Parameter(
torch.FloatTensor(input_size, output_size)
)
nn.init.xavier_uniform_(self.w)
self.b = nn.Parameter(
torch.FloatTensor(output_size).fill_(0.)
)
self.noise_std = noise_std
def forward(self, x):
if self.training:
x_new = x + torch.normal(0., self.noise_std, size=x.shape, device=x.device)
else:
x_new = x
return x_new @ self.w + self.b
import torch.nn.functional as F
class NoisyModel(torch.nn.Module):
def __init__(self, input_size=2, hidden_size=16, output_size=2, noise_std=0.05):
super().__init__()
self.hidden_layer1 = NoisyLinear(input_size, hidden_size, noise_std=noise_std)
self.hidden_layer2 = nn.Linear(hidden_size, hidden_size)
self.hidden_layer3 = nn.Linear(hidden_size, output_size)
def forward(self, x):
x = self.hidden_layer1(x)
x = F.relu(x)
x = self.hidden_layer2(x)
x = F.relu(x)
x = self.hidden_layer3(x)
return x
model = NoisyModel().to(device)
modelNoisyModel(
(hidden_layer1): NoisyLinear()
(hidden_layer2): Linear(in_features=16, out_features=16, bias=True)
(hidden_layer3): Linear(in_features=16, out_features=2, bias=True)
)model = NoisyModel(noise_std=0.05).to(device)
loss_fn = nn.CrossEntropyLoss() # cross entropy
optimizer = torch.optim.SGD(model.parameters(), lr=5e-2)
model, model_stats= train(model, loss_fn, optimizer, train_dataset, val_dataset, max_epochs=200)

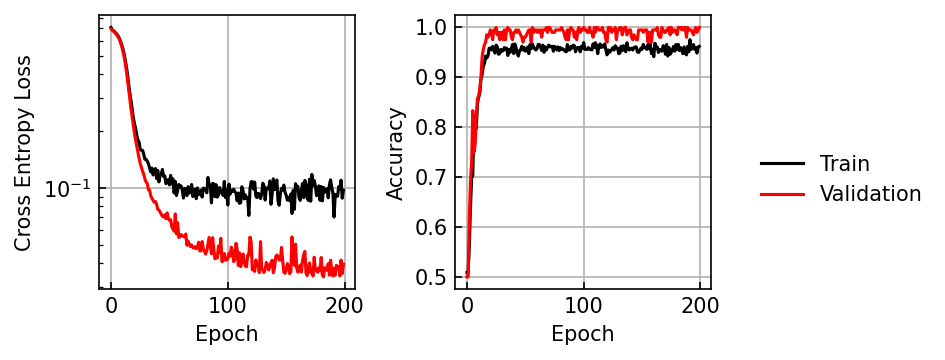

loss_accuracy_plot(*model_stats)
plt.tight_layout()
ax = plt.figure().gca()
plot_decision_boundary(ax, X_test, y_test, model)100%|██████████| 200/200 [00:06<00:00, 29.55it/s, epoch=200 / 200, train_acc=0.962, train_loss=0.097, val_acc=1.000, val_loss=0.039]
<Axes: >
MNIST Classification¶
import torchvision
from torchvision.transforms import v2
transform = v2.Compose([
v2.ToImage(), # Convert to Image object (we'll talk about this more next class)
v2.ToDtype(torch.float32, scale=True), # Convert to Torch Tensor
])
train_val_ds = torchvision.datasets.MNIST(
root='~/scr10',
train=True,
transform=transform,
download=True
)
# Split into training and validation sets
train_ds, val_ds = random_split(train_val_ds, lengths=[0.8, 0.2])
test_ds = torchvision.datasets.MNIST(
root='~/scr10',
train=False,
transform=transform,
download=False
)model = nn.Sequential(
nn.Flatten(),
nn.Linear(28*28, 32),
nn.ReLU(),
nn.Linear(32, 32),
nn.ReLU(),
nn.Linear(32, 10)
)
model = model.to(device)
modelSequential(
(0): Flatten(start_dim=1, end_dim=-1)
(1): Linear(in_features=784, out_features=32, bias=True)
(2): ReLU()
(3): Linear(in_features=32, out_features=32, bias=True)
(4): ReLU()
(5): Linear(in_features=32, out_features=10, bias=True)
)Adam optimizer¶
The Adam, or adaptive momentum optimizer, makes use of two minimal extensions to stochastic gradient descent:
adaptive learning rate
momentum
loss_fn = nn.CrossEntropyLoss() # cross entropy
optimizer = torch.optim.Adam(model.parameters(), lr=3e-4)
model, model_stats= train(model, loss_fn, optimizer, train_ds, val_ds,
batch_size=64, num_workers=4, max_epochs=20)

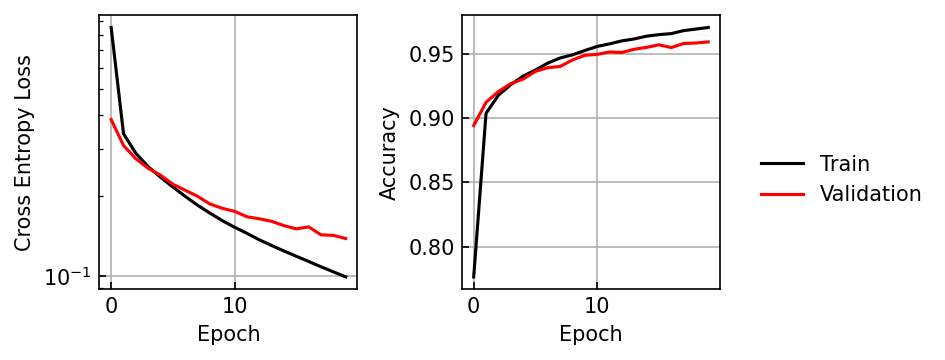

loss_accuracy_plot(*model_stats)
plt.tight_layout()100%|██████████| 20/20 [01:26<00:00, 4.31s/it, epoch=020 / 020, train_acc=0.971, train_loss=0.099, val_acc=0.960, val_loss=0.138]
# Inference
model.eval()
test_loader = DataLoader(test_ds, batch_size=64, num_workers=4, shuffle=False)
with torch.no_grad():
test_correct_ = 0.
for xb, yb in tqdm(test_loader,leave=False):
xb = xb.to(device)
yb = yb.to(device)
y_pred = model(xb)
y_pred = torch.argmax(y_pred, dim=1)
test_correct_ += (y_pred == yb).float().sum().item()
test_acc = test_correct_ / len(test_loader.dataset)
print(f"Test accuracy: {test_acc:.3f}") Test accuracy: 0.960
Learning rate schedulers¶
from tqdm import tqdm, trange
def train_scheduler(model, loss_fn, optimizer, scheduler, train_dataset, val_dataset,
batch_size=32, max_epochs=100, num_workers=0, device=device):
# Send model to correct hardware device
model = model.to(device)
# Create dataloaders for train/validation
train_loader = DataLoader(train_dataset, batch_size=batch_size, num_workers=num_workers, shuffle=True)
val_loader = DataLoader(val_dataset, batch_size=batch_size, num_workers=num_workers, shuffle=False)
train_loss, train_acc = [], []
val_loss, val_acc = [], []
pbar_epoch = trange(max_epochs)
for ii in pbar_epoch:
train_loss_ = 0.
train_acc_ = 0.
for x, y, in train_loader:
# Send x, y to GPU/TPU/etc.
x = x.to(device)
y = y.to(device)
# Make a prediction, compute the loss
y_pred = model(x)
loss = loss_fn(y_pred, y)
# Backpropagate gradients, apply weight updates, reset gradients
loss.backward()
optimizer.step()
optimizer.zero_grad()
# Logging
train_loss_ += loss.item() * x.shape[0]
train_acc_ += (torch.argmax(y_pred, dim=1) == y).float().sum().item()
train_loss.append(train_loss_ / len(train_dataset))
train_acc.append(train_acc_ / len(train_dataset))
val_loss_ = 0.
val_acc_ = 0.
with torch.no_grad():
for x, y, in val_loader:
# Send x, y to GPU/TPU/etc.
x = x.to(device)
y = y.to(device)
# Make a prediction, compute the loss
y_pred = model(x)
loss = loss_fn(y_pred, y)
# Logging
val_loss_ += loss.item() * x.shape[0]
val_acc_ += (torch.argmax(y_pred, dim=1) == y).float().sum().item()
val_loss.append(val_loss_ / len(val_dataset))
val_acc.append(val_acc_ / len(val_dataset))
pbar_epoch.set_postfix(
epoch=f"{ii+1:03d} / {max_epochs:03d}",
lr=f"{optimizer.param_groups[0]['lr']:.3g}",
train_loss=f"{train_loss[-1]:.3f}",
train_acc=f"{train_acc[-1]:.3f}",
val_loss=f"{val_loss[-1]:.3f}",
val_acc=f"{val_acc[-1]:.3f}")
scheduler.step()
return model, (train_loss, train_acc, val_loss, val_acc)
loss_fn = nn.CrossEntropyLoss() # cross entropy
optimizer = torch.optim.SGD(model.parameters(), lr=5e-2)
scheduler = torch.optim.lr_scheduler.ExponentialLR(optimizer, gamma=0.98) # Decay learning rate by factor
model, model_stats= train_scheduler(model, loss_fn, optimizer, scheduler, train_ds, val_ds,
batch_size=64, num_workers=4, max_epochs=10)

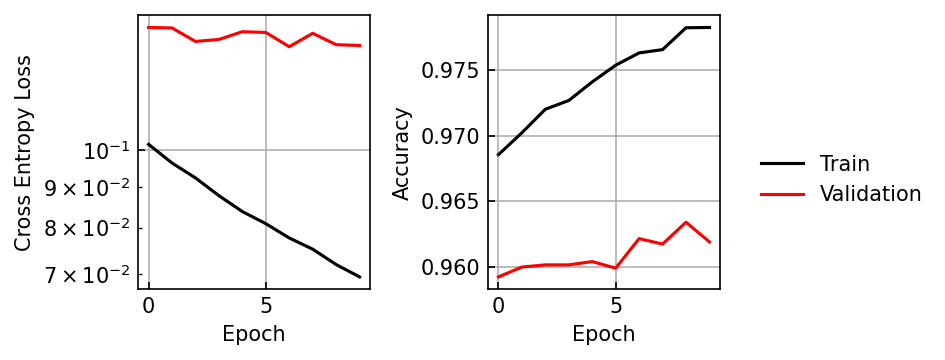

loss_accuracy_plot(*model_stats)
plt.tight_layout()100%|██████████| 10/10 [00:43<00:00, 4.31s/it, epoch=010 / 010, lr=0.0417, train_acc=0.978, train_loss=0.069, val_acc=0.962, val_loss=0.135]
# Inference
model.eval()
test_loader = DataLoader(test_ds, batch_size=64, num_workers=4, shuffle=False)
with torch.no_grad():
test_correct_ = 0.
for xb, yb in tqdm(test_loader,leave=False):
xb = xb.to(device)
yb = yb.to(device)
y_pred = model(xb)
y_pred = torch.argmax(y_pred, dim=1)
test_correct_ += (y_pred == yb).float().sum().item()
test_acc = test_correct_ / len(test_loader.dataset)
print(f"Test accuracy: {test_acc:.3f}") Test accuracy: 0.963
